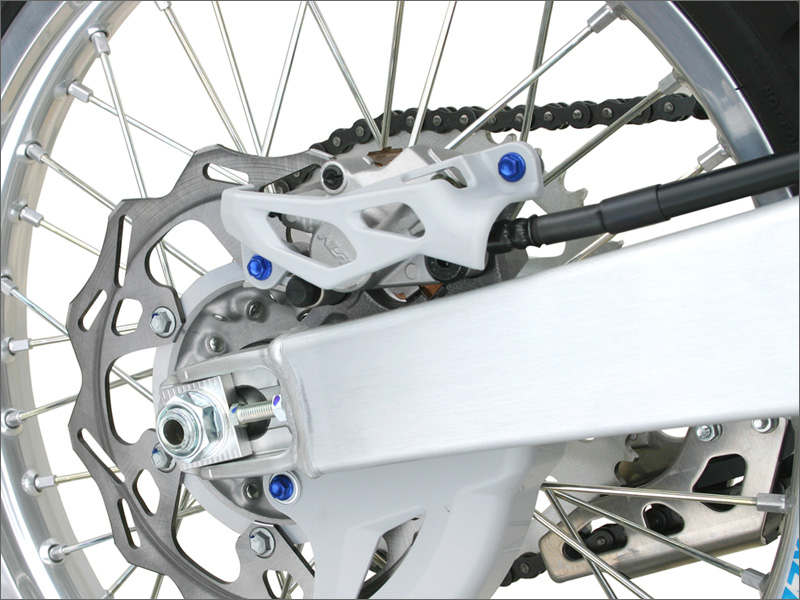

Aluminum Bolt
SPECIFICATIONS:
- Made of 7000 grade aluminum.
- Light weight.
- Can be selected from flange-head or taper-head for each bolt size.

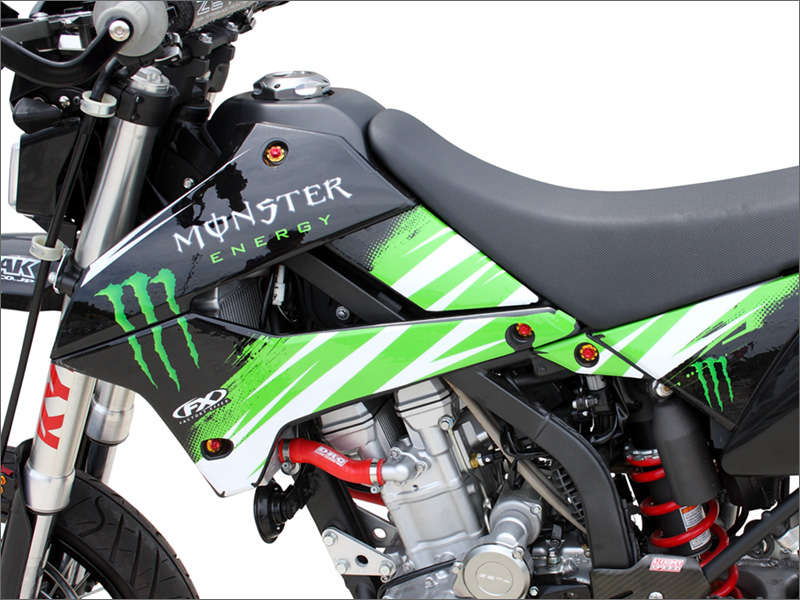

- Suitable for mounting plastics and more.
- Colors available: Black, Titanium, Gold, Red and Blue.
- Available in M6 size.- Sold in set of 4 and 20.
- Tightening torque M6 Bolts.......6N・m
| Color | (A)Size | 4 pack | 20 pack |
| part number | part number | ||
| M6 Aluminum Flange Bolt | |||
| Blue | 12mm | D58-51-112 | D58-51-612 |
| 16mm | D58-51-116 | D58-51-616 | |
| 20mm | D58-51-120 | D58-51-620 | |
| 25mm | D58-51-125 | D58-51-625 | |
| 30mm | D58-51-130 | D58-51-630 | |
| 35mm | D58-51-135 | D58-51-635 | |
| Red | 12mm | D58-51-212 | D58-51-712 |
| 16mm | D58-51-216 | D58-51-716 | |
| 20mm | D58-51-220 | D58-51-720 | |
| 25mm | D58-51-225 | D58-51-725 | |
| 30mm | D58-51-230 | D58-51-730 | |
| 35mm | D58-51-235 | D58-51-735 | |
| Gold | 12mm | D58-51-312 | D58-51-812 |
| 16mm | D58-51-316 | D58-51-816 | |
| 20mm | D58-51-320 | D58-51-820 | |
| 25mm | D58-51-325 | D58-51-825 | |
| 30mm | D58-51-330 | D58-51-830 | |
| 35mm | D58-51-335 | D58-51-835 | |
| Titanium color | 12mm | D58-51-412 | D58-51-912 |
| 16mm | D58-51-416 | D58-51-916 | |
| 20mm | D58-51-420 | D58-51-920 | |
| 25mm | D58-51-425 | D58-51-925 | |
| 30mm | D58-51-430 | D58-51-930 | |
| 35mm | D58-51-435 | D58-51-935 | |
| Black | 12mm | D58-51-512 | - |
| 16mm | D58-51-516 | - | |
| 20mm | D58-51-520 | - | |
| 25mm | D58-51-525 | - | |
| M6 Aluminum Taper Bolt | |||
| Blue | 12mm | D58-52-112 | D58-52-612 |
| 16mm | D58-52-116 | D58-52-616 | |
| 20mm | D58-52-120 | D58-52-620 | |
| 25mm | D58-52-125 | D58-52-625 | |
| 30mm | D58-52-130 | D58-52-630 | |
| 35mm | D58-52-135 | D58-52-635 | |
| Red | 12mm | D58-52-212 | D58-52-712 |
| 16mm | D58-52-216 | D58-52-716 | |
| 20mm | D58-52-220 | D58-52-720 | |
| 25mm | D58-52-225 | D58-52-725 | |
| 30mm | D58-52-230 | D58-52-730 | |
| 35mm | D58-52-235 | D58-52-735 | |
| Gold | 12mm | D58-52-312 | D58-52-812 |
| 16mm | D58-52-316 | D58-52-816 | |
| 20mm | D58-52-320 | D58-52-820 | |
| 25mm | D58-52-325 | D58-52-825 | |
| 30mm | D58-52-330 | D58-52-830 | |
| 35mm | D58-52-335 | D58-52-835 | |
| Titanium color | 12mm | D58-52-412 | D58-52-912 |
| 16mm | D58-52-416 | D58-52-916 | |
| 20mm | D58-52-420 | D58-52-920 | |
| 25mm | D58-52-425 | D58-52-925 | |
| 30mm | D58-52-430 | D58-52-930 | |
| 35mm | D58-52-435 | D58-52-935 | |
| Black | 12mm | D58-52-512 | - |
| 16mm | D58-52-516 | - | |
| 20mm | D58-52-520 | - | |
| 25mm | D58-52-525 | - | |
Aluminum Nut
SPECIFICATIONS:
- Made of 7000 grade aluminum.
- Light weight.
- Suitable for mounting plastics and more.
- Colors available: Titanium, Gold, Red and Blue.
- Available in M6 size.- Sold in set of 4 and 20.
| Color | (A)Size | 4 pack | 20 pack |
| part number | part number | ||
| M6 Aluminum Flange Nut | |||
| Blue | D58-53-101 | D58-53-601 | |
| Red | D58-53-201 | D58-53-701 | |
| Gold | D58-53-301 | D58-53-801 | |
| Titanium color | D58-53-401 | D58-53-901 | |
| Black | D58-53-501 | - | |
Aluminum Spacer
SPECIFICATIONS:
- Made of forged 6061 Aluminum, light weight.
- Available φ18mm M6 and φ20mm M6 washer sizes.
- Suitable for mounting plastics and more.
- Available in 4 different designs and 5 different anodized colors.
- φ18mm M6 spacers are sold in sets of 4 and 20.
- φ20mm M6 spacers are sold in sets of 10.
| Φ18 M6 Aluminum Spacer | |||
| Color | (A)Size | 4 pack | 20 pack |
| part number | part number | ||
| Blue | Type01 | D58-57-111 | D58-57-114 |
| Red | D58-57-121 | D58-57-124 | |
| Gold | D58-57-131 | D58-57-134 | |
| Titanium color | D58-57-141 | D58-57-144 | |
| Black | D58-57-151 | D58-57-154 | |
| Blue | Type02 | D58-57-211 | D58-57-214 |
| Red | D58-57-221 | D58-57-224 | |
| Gold | D58-57-231 | D58-57-234 | |
| Titanium color | D58-57-241 | D58-57-244 | |
| Black | D58-57-251 | D58-57-254 | |
| Blue | Type11 | D58-57-311 | D58-57-314 |
| Red | D58-57-321 | D58-57-324 | |
| Gold | D58-57-331 | D58-57-334 | |
| Titanium color | D58-57-341 | D58-57-344 | |
| Black | D58-57-351 | D58-57-354 | |
| Blue | Type12 | D58-57-411 | D58-57-414 |
| Red | D58-57-421 | D58-57-424 | |
| Gold | D58-57-431 | D58-57-434 | |
| Titanium color | D58-57-441 | D58-57-444 | |
| Black | D58-57-451 | D58-57-454 | |
| Φ20 M6 Aluminum Spacer | |||
| Color | size | 10 pack | |
| Blue | Type31 | D58-58-114 | |
| Red | D58-58-124 | ||
| Gold | D58-58-134 | ||
| Titanium color | D58-58-144 | ||
| Black | D58-58-154 | ||
